| Item No: |
DEL-FPGM10 |
| List Price: |
$123.63 |
| Your Price: |
$92.72 |

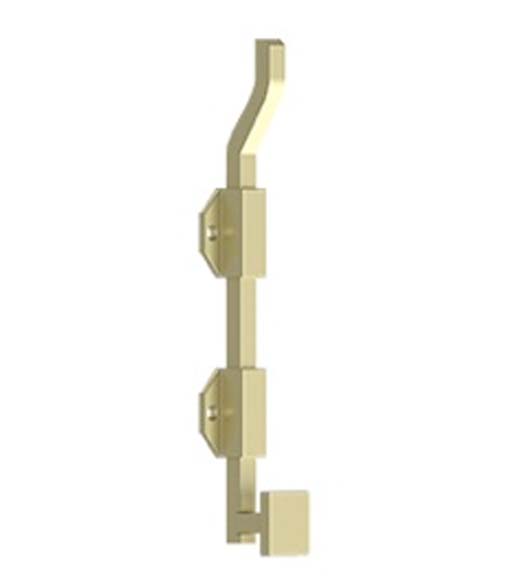

Deltana FPGM10, 10 Inch Modern Offset Surface Door Bolt
The 10" modern offset door bolts made of heavy duty solid brass and is available in 8 different finishes. The guides are held in place with a unique ball bearing system that eliminates scratches on the barrel of the bolt, prevents rattling of the bolt, holds the bolt in any position, and ensures a smooth sliding action. Each 10 inch modern offset surface bolt is supplied with 3 strikes: universal, mortise, and angle strike with matching solid brass phillip's head screws.
Also available:
18" Modern Offset Surface Bolt -
26" Modern Offset Surface Bolt -
42" Modern Offset Surface Bolt
|
Specifications for the Deltana FPGM10 10 Inch Offset Modern Surface Bolt:
- Material: Solid Brass
- Bolt Length: 10"
- Bolt Throw: 1-1/16"
- Bolt Height: 1/2"
- Bolt Width: 3/8"
- Bolt Offset: 5/8"
- Width of Guides: 1-3/4"
- Total Projection: 1-9/16"
- Knob Diameter: 1-5/16" Square
- Rod Resistance: 109 lbs
- Strikes: Includes 3 Different Strike Plates

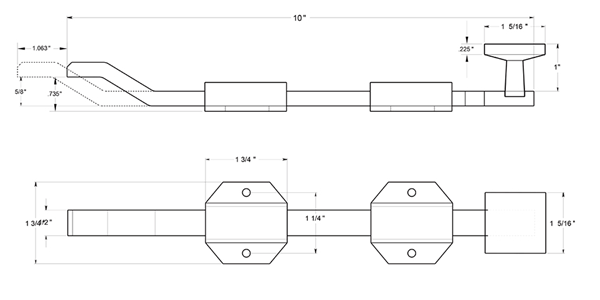

- Deltana FPGM10 10" Modern Offset Surface Bolt Dimensions (PDF)
|
|
No matter which finish you choose for the outside, it will still be solid brass material inside.
|
