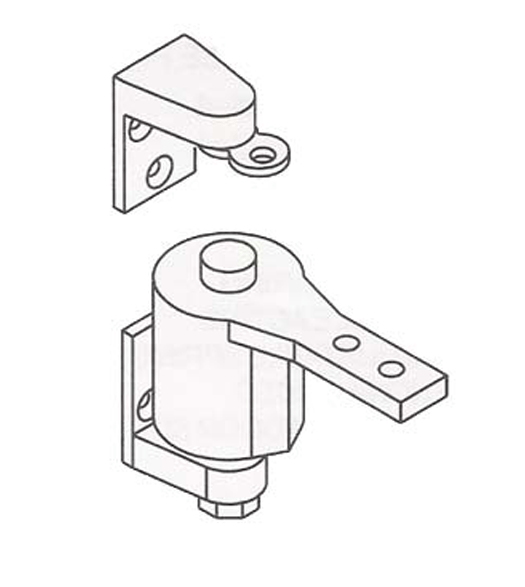

Bommer 7412, Gravity Door Pivot Hinge Surface Mounted
Bommer 7412 Gravity Door Pivot Hinge, Surface Mounted. Cast Brass construction pivot hinge for doors up to 24" wide, 1-7/8" thick with a maximum door weight of 35 lbs.
Also available: Bommer 7411 Box Clamp Mount Gravity Door Pivot Hinge.
Bommer Industries has been in business since 1876, with over 140 years of quality products. Their products are American made with American metals.
Specifications of the Surface Mount Gravity Door Pivot:
- Maximum Door Width: 24"
- Maximum Door Thickness: 1-7/8"
- Maximum Door Weight: 35 lbs.
- Brass Construction
- Surface Mounted Pivot
- Double Acting
- Door weight closes door. No Springs
- Non-Handed
- Flat Door Bracket: For doors not less than 3/4" thick
- Flat Jamb Bracket: 1-1/4" Wide
- Packaged with #10 - 1" Flat Head Wood Screws
- Bommer 7412 Dimensions (PDF)
Sold individually as a set, with 1 pivot , 1 each jamb and door bracket, 1 top pivot assembly with jamb bracket, and mounting hardware. Enough to do one door.
|
