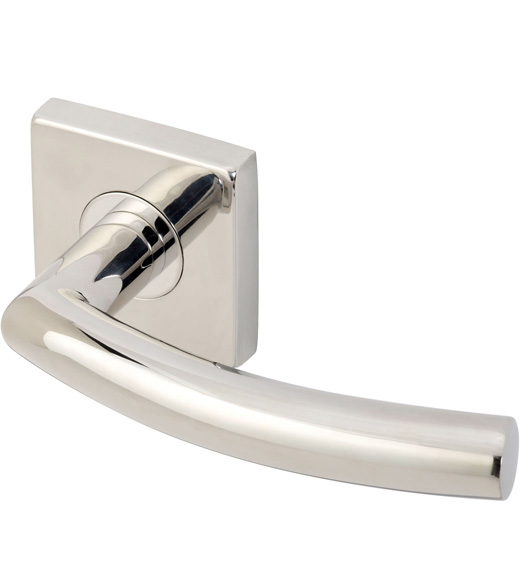

The Oslo Stainless Steel Leverset is available in satin stainless steel and polished stainless steel finishes. The Oslo Lever with SE Rosette will fit 1-3/8 inch to 1-3/4 inch thick doors with standard backsets of 2-3/8 inches or 2-3/4 inches. This modern curved lever is easy to install and features concealed screw mounting for a clean look. It is available in dummy, passage, and privacy functions.

Features of the Stainless Steel Oslo Leverset:

• Fits most standard door cut outs (2-1/8" pre-drilled doors).
• Hollow stainless steel lever.
• Latch: 28 Degrees Retraction (TL4 Latch)
• Concealed Installation
• Sold as complete set.
• Easy to install.

Specifications of the INOX 103 Oslo Lever with SE Rosette:

• Material: 304 Stainless Steel
• Lever Length: 5-5/16"
• Lever Projection: 2-7/16"
• Rose Length: 2-3/8" square
• Rose Projection: 7/16"
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Hub and Spindle: 5/16" (8mm) Square
• Latch Faceplate: 1" x 2-1/4" Standard Square Corner
• Latch Strike: Full Lip Strike and T-Strike with Square Corners.

Available Functions:

• Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide

Select Function - Important Ordering Guide DR: Single Dummy (right handing) DL: Single Dummy (left handing) L461: Passage (hall or closet) Add  $96.00 L462: Privacy (bedroom or bathroom) Add  $96.00   Select Finish  US32D: Satin Stainless Steel US32: Polished Stainless Steel Add  $16.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
