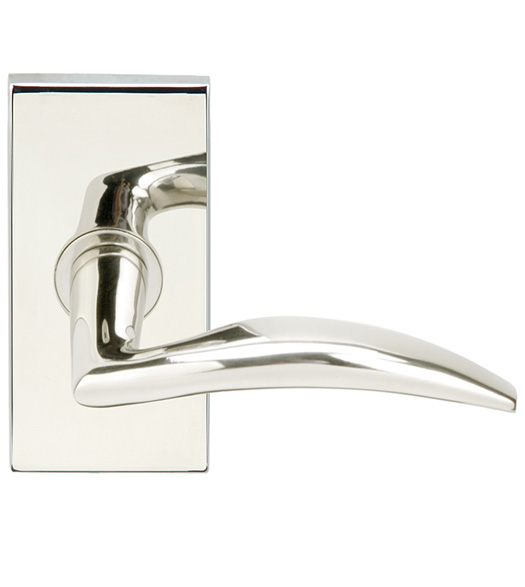

The Air-Stream Lever with Rectangular Rosette is reminiscent of the styles used in classic Airstream trailers. Everything from the curve of the lever to the stainless steel material from which it is made speaks of mid century modern decore. The Retro Air-Stream Lever with Rectangle Rose is easy to install and is available in dummy, passage, and privacy functions perfect for most standard cut-out interior doors.

Features of the Stainless Steel Air-Stream Leverset:

• Fits most standard door cut outs (2-1/8" pre-drilled doors).
• Solid stainless steel lever.
• Latch: 28 Degrees Retraction (TL4 Latch)
• Concealed Installation
• Sold as complete set.
• Easy to install.

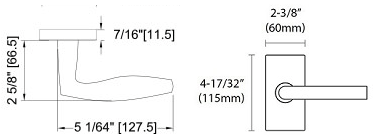

Specifications of the INOX 210 Air-Stream Lever with SH Rose:

• Material: 304 Stainless Steel
• Lever Length: 5"
• Lever Projection: 2-5/8"
• Rose Height: 4-17/32"
• Rose Width: 2-3/8"
• Rose Projection: 7/16"
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Hub and Spindle: 5/16" (8mm) Square
• Latch Faceplate: 1" x 2-1/4" Standard Square Corner
• Latch Strike: Full Lip Strike and T-Strike with Square Corners.

Available Functions:

• Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide
