This 24 inch stainless steel door handle features an easy to grip 1-3/8" x 9/16" rectangular pull handle that is very comfortable. Made from 304 stainless steel with a satin stainless finish, its a great and modern door handle for almost any application. The 24 Inch Rectangle Door Handle can be surface mounted, thru-bolt mounted, or back-to-back mounted.

Also available: 3 Foot Rectangle Stainless Steel Door Handle and 4 Foot Rectangle Stainless Steel Door Handle

Specifications for the 24" Rectangle Stainless Door Handle:

• Material: 304 Stainless Steel Tubing
• Finish: Satin Stainless Steel
• Total Length: 24-1/8" (610 mm)
• Mounting Centers: 14-3/8" (365 mm) C/C
• Projection: 2-9/16" (64 mm)
• Clearance: 2" (50 mm)
• Rectangle Handle Diameter: 1-3/8" x 9/16"
• Mounting Post Diameter: 1" Square
• ADA Compliant
• DWD-RTPULL24-630 Specifications (PDF)

When Selecting a Mounting Hardware:

• Thru-Bolted Mounting: Pull bolts through the door.
• Surface Mounting: Pull screws to the face of the door.

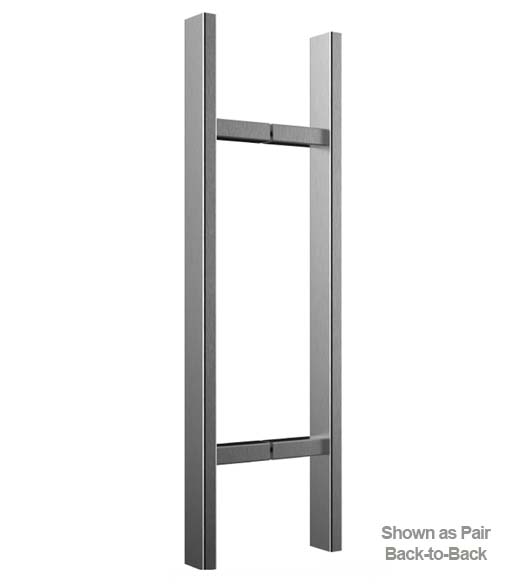

• Back to Back Mounting: Pulls bolt to each other through the door. Requires 2 pulls.

Sold individually (1 door pull handle). If you order Back-to-Back Mounting please Order 2 Pulls.
