Fits standard 2-1/8" pre drilled doors. Available as Single Cylinder (Keyed lock on the outside with thumbturn inside) or Double Cylinder (Keyed lock on both outside and inside).

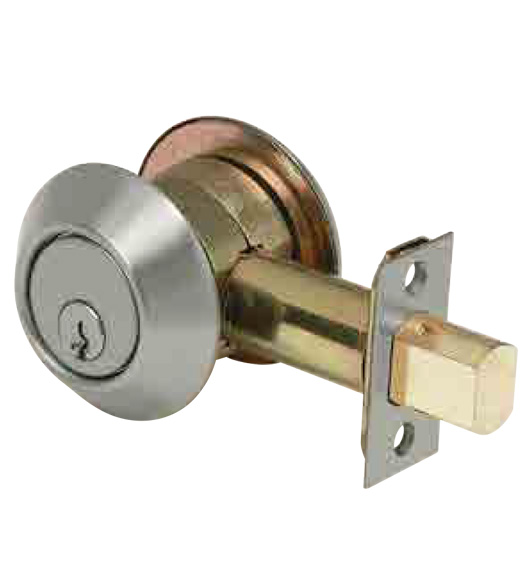

Specifications for the PDQ Extra Heavy Duty Commercial Deadbolt:

• Door Thickness: Adjustable for 1-3/8" to 1-3/4" thick.
• Door Prop: Fits standard 2-1/8" door prep.
• Backsets: 2-3/8" or 2-3/4"
• Deadbolt: 1" throw with case-hardened roller pin. Brass.
• Strike: 2-3/4" x 1-1/8"
• Trim: wrought brass.
• Keyways: Schlage "C" Standard.
• Cylinder: Brass 6-pin cylinder keyed to 5-pins.

Available Functions for PDQ Standard Duty Commercial Deadbolt:

• Single Cylinder: Keyed lock cylinder on the outside with thumbturn inside
• Double Cylinder: Keyed lock cylinder on both outside and inside

Select Function - Important Ordering Guide KT116 Single Cylinder KT137 Double Cylinder Add  $11.84   Select Backset - Important Ordering Guide 2-3/4" Backset 2-3/8" Backset   Select Finish  US26D: Satin Chrome   Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
