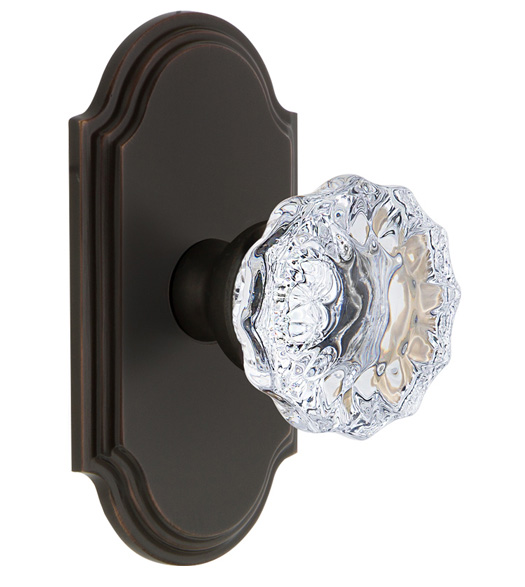

The Clear Crystal Fontainebleau Knob with Arc Rose is a beautiful knobset perfect for historic homes. The Arc Short Plate with Fontainebleau Crystal is available in dummy, passage, and privacy functions. The Crystal Fontainebleau Knob with Arc Rose will fit most standard pre-drilled doors.

Features of the Grandeur ARCFON Arc Rosette with Crystal Fontainebleau Knob:

• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Crystal Fontainebleau Knobset with Arc Short Plate:

• Knob Material: Crystal
• Rose Material: Brass
• Knob Diameter: 2.30"
• Knob Projection: 2.32"
• Rose Width: 2.5"
• Rose Height: 4.75"
• Door Thickness: Adjustable 1-3/8" to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Grandeur ARCFON Dimensions (PDF)

When Selecting A Function:

• Single Dummy: A surfaced mounted, non-working knob. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
• Double Dummy: Surfaced mounted, non-working knobs. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
• Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two knobs.
• Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.

Sold Individually



Select Function - Important Ordering Guide Single Dummy Double Dummy Add  $128.00 Passage (hall or closet) Add  $128.00 Privacy (bedroom or bathroom) Add  $128.00   Select Finish  TB: Timeless Bronze LB: Lifetime Polished Brass PB: Polished Brass VB: Vintage Brass PN: Polished Nickel SN: Satin Nickel AP: Antique Pewter   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
