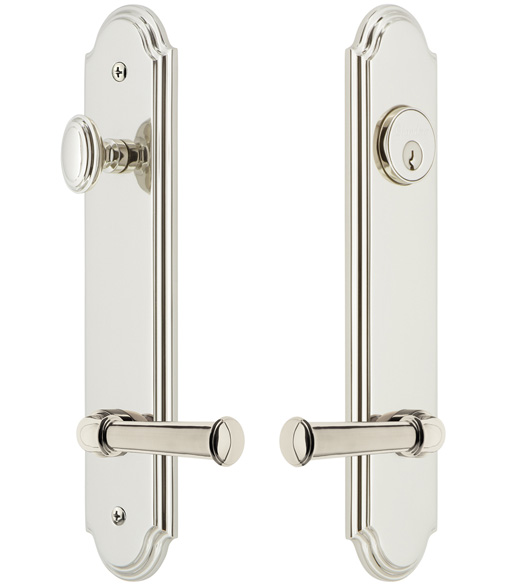

The Georgetown Keyed Entry Lever with Arc Tall Plate is a historic looking front door lock well-suited for high-end homes. This elegant Keyed Entry Georgetown Lever with Arc Plate is a single cylinder lock. It is available in a wide array of finish options. The Arc Tall Plate Entrance Set with Georgetown Lever will fit doors with a thickness range from 1-3/4 inches to 2-1/4 inches thick with either 2-3/8 inch or 2-3/4 inch backsets.

Single Cylinder Entry Set: The deadbolt is thrown and retracted by key from the exterior and by turn unit on the interior. A lever operates the door latch from both interior and the exterior.

Want your entire house to have matching hardware? Also Available Georgetown Lever with Arc Tall Plate for Interior Doors in Privacy, Passage, and Dummy Functions.

Features of the Single Cylinder Grandeur Georgetown Lever with Arc Plate:

• Keyway: Schlage "C"
• Made out of solid forged brass.
• One inch throw deadbolt.
• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Keyed Entry Set Georgetown Leverset with Arc Tall Plate:

• Lever Length: 4.75"
• Lever Projection: 2.625"
• Plate Height: 11"
• Plate Width: 2-1/2"
• Plate Projection: .39"
• Mounting Centers: 8-1/4"
• Door Thickness: Adjustable 1-3/4" to 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Grandeur ARCGEO19ENTR Dimensions (PDF)

Sold Individually



Select Finish  PN: Polished Nickel SN: Satin Nickel AP: Antique Pewter LB: Lifetime Polished Brass VB: Vintage Brass TB: Timeless Bronze   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Keying - Important Ordering Guide I Only ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
