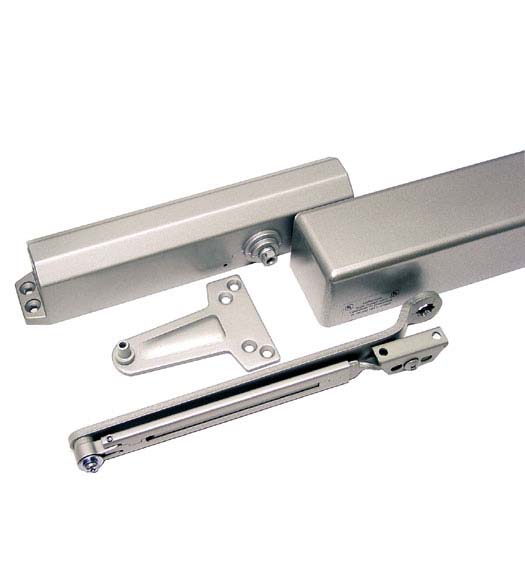

For doors weighing up to 330 pounds, Deltana's Heavy Duty Door closer is for universal applications. It meets handicap ADA requirements and is UL rated. An ANSI grade 1 door closer, it comes packaged with parallel bracket, sex bolts, and a cast aluminum body. The dual valve means that it has adjustable closing and latching speeds.

Features of the Deltana DC90 Heavy Duty Door Closer:

• Adjustable closing speed.
• Adjustable latching speed.
• Adjustable backcheck.
• UL 10C Fire Rated. R27405 UL LISTED 47V5
• ANSI A 156.4 Grade 1 Certified.
• ADA Compliant: meets ANSI A 117.1 requirements.
• Comes packaged with parallel bracket, sex bolts, and a cast aluminum body with a forged steel arm.
• Rack and pinion with needle bearings.
• Non-handed.

Specifications and Features:

• Maximum Door Weight: 330 lbs.
• Closer Body Height: 2"
• Closer Body Length: 11-3/4"
• Projection from Door: 2-1/2"
• Horizontal Mounting Holes: 11-1/8"
• Vertical Mounting Holes: 3/4"
• Spring Size: 1-6
• Deltana DC90 Specifications Diagram (PDF)
• Deltana DC90 Installation Instructions (PDF)

Sold Individually

Select Finish  AL: Aluminum DURO: Dark Bronze GOLD: Gold WHITE: White
Quantity
