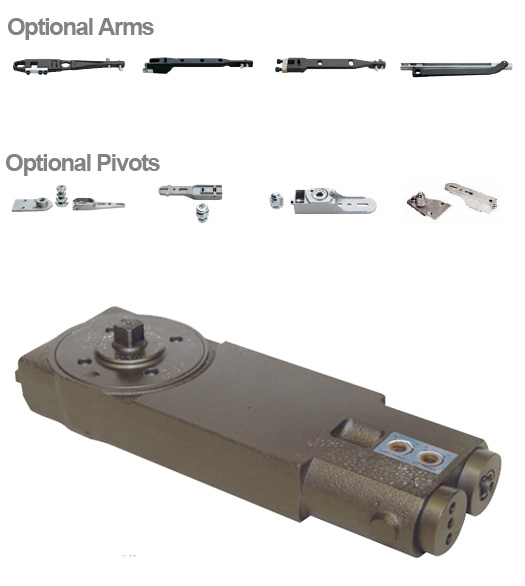

Build an assembly. Choose your closer spring size, closer arm and door pivot. Replaces Jackson 20-330 and International 200 series Double acting Concealed Overhead Closers.

4 different Closer spring sizes:

• Light Spring Size #3 : Maximum Door Size: 30" Wide, 125 lbs
• Medium Spring Size #4 : Maximum Door Size: 41" Wide, 175 lbs
• Heavy Spring Size #5 : Maximum Door Size: 48" Wide, 225 lbs
• ADA Compliant Adjustable Spring #1- #4: Maximum Door Size: 48" Wide, 225 lbs

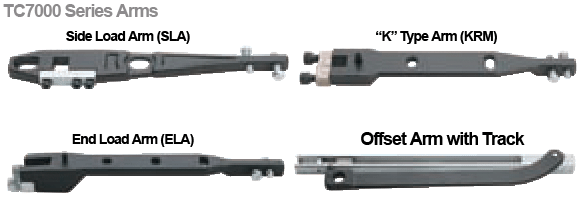

4 different optional Closer Arms are available:

Center Hung Doors - Double or Single Acting
• (SLA) Side Load Arm "S" Type adjustable Side Load Arm Assembly: 1/2" deep top rail
• (ELA) End Load Arm "A" Type End Load Arm (ELA) assembly: 1" deep top rail
• (KRM) End Load Arm "K" Type End Load Arm (KRM) assembly: 5/8" deep top rail
Offset Hung Doors - Single Acting
• (OFFSET) Offset Arm and Track JO Mortised Type Offset Arm and Track assembly: 9/16" deep top rail - aluminum

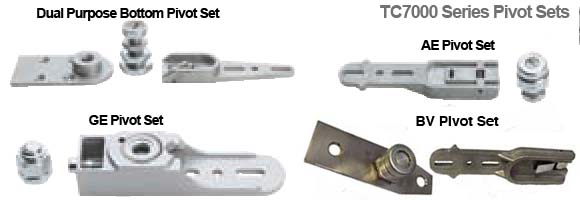

4 different optional Door Pivot Sets are available:

• OHC-Pivot - Adjustable Dual Purpose bottom pivot set - Standard application
• AE-Pivot - Adjustable threshold mount bottom pivot set - 1" deep bottom rail
• GE-Pivot - Adjustable threshold mount bottom pivot set - 1-1/2" deep bottom rail
• BV-Pivot - Adjustable floor mount bottom pivot set - 1" deep bottom rail

Select Door Closer Options  TC7020: Light #3 Back Stop 105 Degrees, Hold Open TC7021: Light #3 Back Stop 105 Degrees, Non-Hold Open TC7022: Light #3 Back Stop 90 Degrees, Hold Open TC7023: Light #3 Back Stop 90 Degrees, Non-Hold Open TC7030: Medium #4 Back Stop 105 Degrees, Hold Open TC7031: Medium #4 Back Stop 105 Degrees, Non-Hold Open TC7032: Medium #4 Back Stop 90 Degrees, Hold Open TC7033: Medium #4 Back Stop 90 Degrees, Non-Hold Open TC7040: Heavy #5 Back Stop 105 Degrees, Hold Open Add  $3.00 TC7041: Heavy #5 Back Stop 105 Degrees, Non-Hold Open Add  $3.00 TC7042: Heavy #5 Back Stop 90 Degrees, Hold Open Add  $3.00 TC7043: Heavy #5 Back Stop 90 Degrees, Non-Hold Open Add  $3.00 TC7010ADA: Adjustable, Back Stop 105 Degrees, Hold Open Add  $20.00 TC7011ADA: Adjustable, Back Stop 105 Degrees, Non-Hold Open Add  $20.00   Select Optional Closer Arm  No Thanks SLA: Side Load Arm Add  $24.36 ELA: End Load Arm Add  $30.50 KRM: "K" Type Arm Add  $30.50 OFFSET: Offset Arm with Track Add  $46.95   Select Optional Pivot Set  No Thanks OHC: Dual Purpose Pivot Set Add  $19.29 AE: AE Pivot Set Add  $39.40 GE: GE Pivot Set Add  $21.98 DC-20-1680: BV Pivot Set Add  $31.00
Quantity
