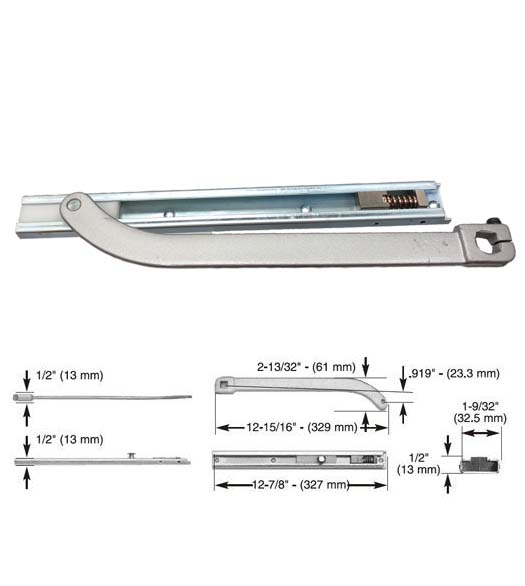

For doors with 5/8" shallow top rails. Replacement Jackson #20-1134LC Offset Arm Set. Mortise Type Track with spring loaded backstop. Nylon slide guide is reversible for 90 or 105 degree door opening.

For Global TC7010 Series, Global TC7020 Series, Global TC7030 Series, Global TC7040 Series and other manufactures replacements for Jackson 20-330 Style concealed door closers including the International 200 series.

Also available: Offset Arm for Deep Top Rail

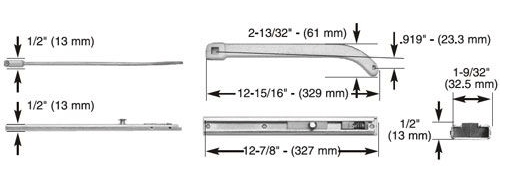

Specifications: for Global Offset Arm and Track

• Non-Handed
• Track Length: 12-7/8"
• Track Width Outside: 1-1/4"
• Track Depth Outside: 1/2"
• Offset Arm and Track Dimensions (PDF)

Sold as a Set - 1 Arm, 1 Track Assembly with nylon guide, plus machine screws.
