| Item No: |
LCN-4040XPT-689 |
| List Price: |
$951.00 |
| Your Price: |
$760.80 |

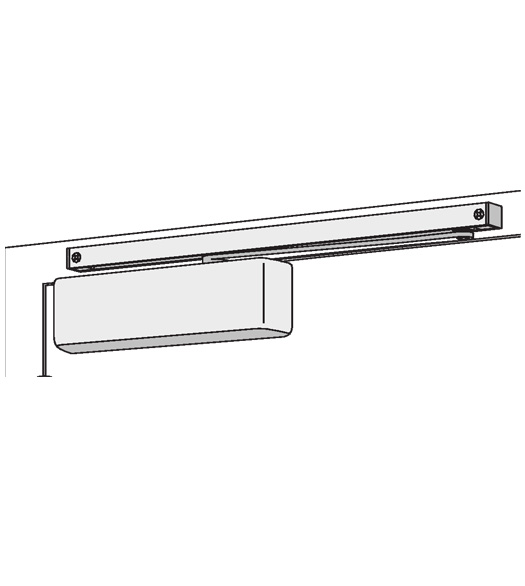

LCN 4040XPT Track Arm Door Closer "Super Smoothee"
The LCN 4040XP heavy duty track closer designed for commercial, institutional and other high traffic applications.
Closer mounts pull side on door, pull side top jamb or push side on door. The LCN 4040XPT is UL - and ULC-listed for self-closing doors.
Tested and certified under ANSI Standard A156.4 Grade One. LCN's most flexible heavy duty closer, non-sized cylinder for interior doors up to 4'. This LCN 4040XP closer is shipped with standard arm, standard track, track roller, standard plastic cover, and self reaming and tapping screws.
Also available: LCN 4040XP with standard arms
Features and Specifications of The LCN 4040XPT Track Door Closer
Adjustable closing speed
Adjustable latching speed
Adjustable back check
Maximum Door Size: 48" Interior
Maximum Opening: 120ยบ
Spring Tension: Adjustable 1-4
LCN "Green Dial" Spring Force Indicator
Non Handed
Certified Grade 1 for 10 Million Cycles
Cast Iron Housing
Forged Steel Arm with Aluminum Track
Double Heat Treated Steel Pinion
All Weather Fluid
UL & cUL Listed
30 Year Warranty
ADA Compliant
Aluminum Finish
LCN 4040XPT Information (PDF)
Aluminum Finish. Packaged complete with standard arm, standard track, track roller, standard plastic cover, and self reaming and tapping screws.
|
