| Item No: |
GRA-NEWSGR |
| List Price: |
$815.00 |
| Your Price: |
$652.00 |

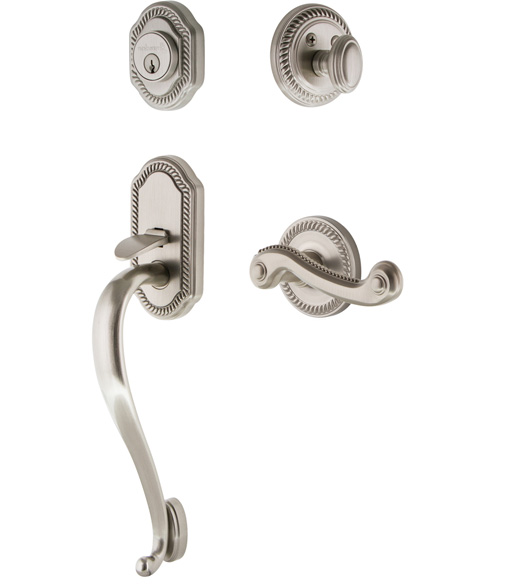

Grandeur NEWSGR, Newport Series Handleset
The elegant rope styling captured by the Newport S Grip Handleset has been a favorite of homeowners for centuries. The historic design rope detailing is reminiscent of European architectural elements. Fashioned from solid, premium-grade brass it has a lifetime mechanical warranty. Grandeur door locks include features such as spring assisted inside trim to make them robust. This high quality solid forged brass entry set includes a high security deadbolt. This handleset fits doors 1-3/4" to 2-1/4" thick with a 2-3/8" or 2-3/4" backset. Available in dummy or single cylinder handlesets in a wide array of finishes.
Click here to see the entire Grandeur - Newport Series
Features of the Grandeur NEWSGR Newport S Grip Handleset:
- Made out of solid forged brass.
- One inch throw deadbolt.
- Lifetime Mechanical Warranty
- 10 Year Finish Warranty
Specifications of the Grandeur Newport Series Handleset:
- Exterior Deadbolt Height: 3.24"
- Exterior Deadbolt Width: 2.56"
- Exterior Top Height: 5"
- Exterior Top Width: 2.56"
- Exterior Bottom Length: 2.03"
- Exterior Bottom Width: 1.02"
- Exterior Overall Height: 17.08"
- Exterior Projection: 3.29"
- Door Thickness: Adjustable 1-3/4" to 2-1/4" with optional thick door kit for doors up to 2-1/2" thick.
- Backset: 2-3/8" or 2-3/4"
- Bore Hole Distance: minimum 4-3/8" center to center.
- Grandeur Handleset Exploded View (PDF)
- Newport S-Grip Handleset Dimensions (PDF)
When Selecting a Function:
- Single Cylinder Handleset: From the exterior, a thumb piece operates the latch and a key operates the deadbolt. From the interior, the lever operates the latch and a thumbturn operates the deadbolt.
- Dummy Handleset: This handleset is does not function--neither locking nor latching.
Note: Inside trim levers are handed. Click Here to determine left or right handed.
|
