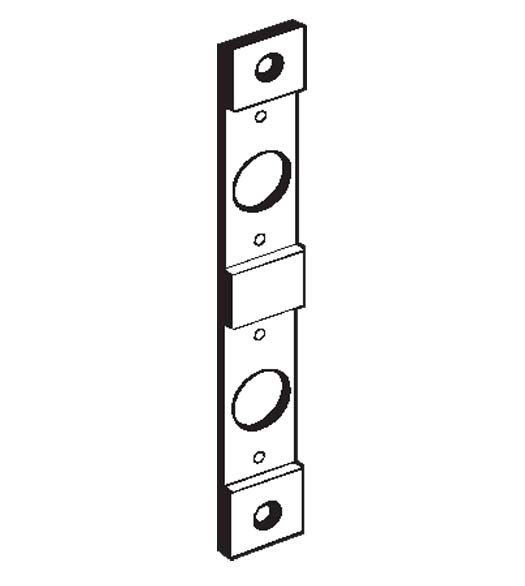

This filler plate allows for the conversion from an 86 cut out (mortise lock) to two (2) 161 cut outs (standard tube latch and deadbolt latch).

Also available: With single hole, Don-Jo CV-86 Mortise Lock Conversion Plate

Just remove the old Mortise Lock box. Screw the filler plate into the doors edge existing mortise lock holes. You can now install a standard latch and deadbolt latch.

Specifications for the Don-Jo CV-8624-PC Mortise Conversion Plate:

• Plate Height: 8"
• Plate Width: 1-1/4"
• Latch Hole Spacing: 4" Center to Center
• Screws: (2) each #12-24 x 1/2" Flat Head Machine Screws
• Material: Steel
• Finish: Primer

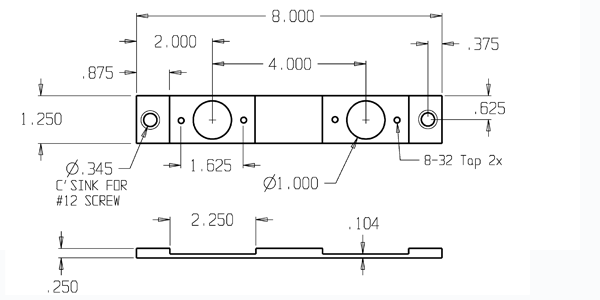

• Don-Jo CV-8624 Conversion Plate Dimensions (PDF)

*Sold Individually.
