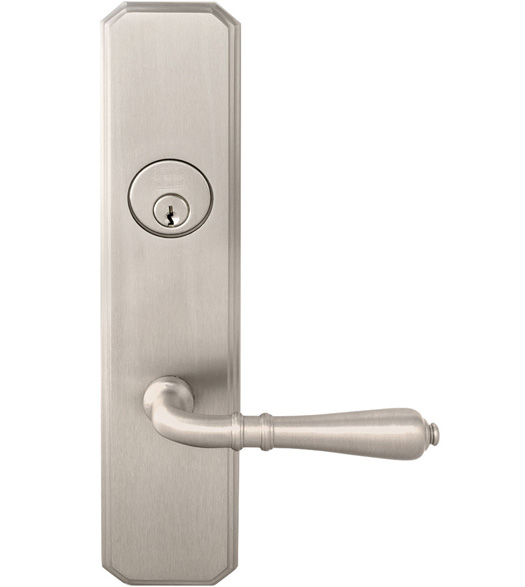

Omnia classic Tulip lever design is for residential and commercial use. The Tulip Mortise Entryset is built to withstand heavy use, Omnia's commercial grade, UL listed, fire rated, mortise lock combines precision engineering for security and durability with attractive design. The Classic Tulip Lever Mortise Lockset is available in a beautiful, classic finish colors for a traditional look for your home.

Also available for standard pre-drilled doors: Omnia D11752

Features of the Tulip Lever Lockset:

• Keyway: Schlage "C"
• Tough, non rusting materials used throughout.
• Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
• Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.
• UL Listed 3 Hour
• ANSI A156.13.2005, Grade 1 Lock

Specifications for Omnia 11752 Simple Lever Mortise Entryset:

• Material: Brass
• Backplate Height: 10-5/8"
• Backplate Width: 2-3/8"
• Lever Length: 4-3/8"
• Doors Thickness: Optional, 1-3/4" - 2-1/4" Thick Doors (Contact Us if doors are thicker)
• Backset: 2-1/2" or 2-3/4"
• 2-1⁄2” b.s.: with 3-7⁄8” minimum stile
• 2-3⁄4” b.s.: with 4-1⁄2” minimum stile
• Front: Adjustable armored steel front, with 8" x 1-1/4" solid brass faceplate.
• Strike: Solid brass curved lip strike.4-7⁄8” x 1-1⁄4” x lip 1-1⁄4” to center.
• Omnia Mortise Lockset Dimensions and Specifications (PDF)

When Selecting a Function:

• Dummy Pair: Stationary both sides of door. Fixed levers, non-functioning. Used as door pulls or to match trim. Complete set - 2 levers, 2 backplates, and mounting screws.
• Passage (Hall / Closet): The latch is operated by a lever from either side. Complete set - 2 levers, 2 backplates, strike plate, latchbolt, dust box, and mounting screws.
• Privacy (Bathroom / Bedroom): The latch operates by lever from either side. Deadbolt is operated by a turnpiece inside and emergency key outside. Turning inside lever will retract both deadbolt and latchbolt at the same time. Complete set - 2 levers, 2 backplates, strike plate, latchbolt, dust box, emergency release tool, and mounting screws.
• Single Cylinder Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button; then opens by key outside, by lever inside. Deadbolt activated by key outside and by turnpiece inside. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.
• Double Cylinder Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button; then opens by key outside, by lever inside. Deadbolt activated only by key from either side. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.
• Panic Proof Entry: Latchbolt operates by lever from either side except when outside trim is locked by stop-button. Deadbolt activated by key outside and by turnpiece inside. Turning inside lever will retract both deadbolt and latchbolt at the same time.
• Storeroom: Latchbolt operates by lever inside and by key outside. The outside lever is rigid. Auxiliary latchbolt deadlocks latchbolt. Complete set - 2 levers, 2 backplates, mortise lock, mortise cylinder, lock faceplate, strike plate, latchbolt, dust box, two keys, and mounting screws.

Select Function - Important Ordering Guide   11752-PD: Dummy Pair   11752-N: Passage (Hall / Closet) Add  $224.80   11752-L: Privacy (Bathroom / Bedroom) Add  $268.00   11752-A: Single Cylinder Entry Add  $371.60   11752-AC: Double Cylinder Entry Add  $371.60   11752-F: Panic Proof Entry Add  $371.60   11752-EW: Storeroom Add  $371.60   Select Finish  US3: Polished Brass SB: Shaded Bronze US26: Polished Chrome US15: Satin Nickel Add  $37.50 US10B: Oil Rubbed Bronze Add  $37.50   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Door Handing & Door Swing - Important Ordering Guide LHR: Left Hand Door, Out-swing LH: Left Hand Door, In-swing RHR: Right Hand Door, Out-swing RH: Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Dummy, Passage, and Privacy) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
