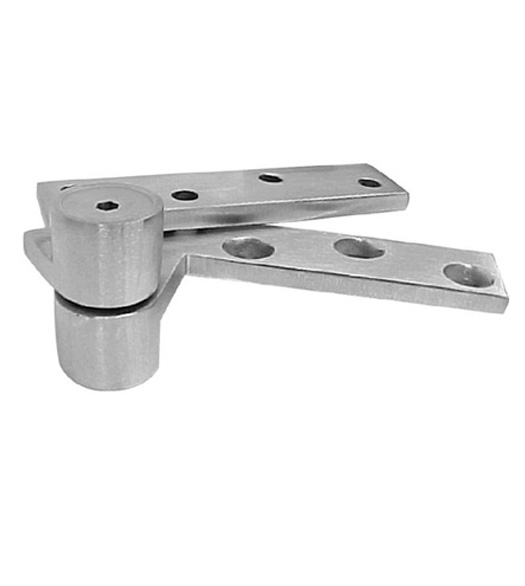

This 3/4" offset top pivot hinge is engineered for durability on standard to heavy doors. Set includes top pivot (for top of the door) with installation hardware. These are used standard with most 3/4" offset ABH Mfg Door Pivots.

Specifications: for ABH 0180 Top Door Pivot

• Offset: 3/4"
• Door Weight: Up to 600 lbs
• Hinge Leaf Length: 4-1/4"
• Hinge Leaf Thickness: 1/4"
• Hinge Type: Full Mortise
• Supplied with needle bearings
• US32D model UL listed for use on 3 hour fire doors
• Non-Handed, Reversible
• ABH 0180 Installation Instructions (PDF)
• ABH 0180 Installation Template (PDF)

*Sold Individually



Select Finish  0180-US32D: Satin Stainless Steel 0180-US10B: Oil Rubbed Bronze Add  $32.80 0180-US3: Polished Brass Add  $40.80 0180-US32: Polished Stainless Steel Add  $40.80 0180-US4: Satin Brass Add  $32.80 0180-S1: Painted Aluminum Add  $32.80 0180-S2: Painted Brass Add  $32.80 0180-S5: Painted Dark Bronze Add  $32.80
Quantity
