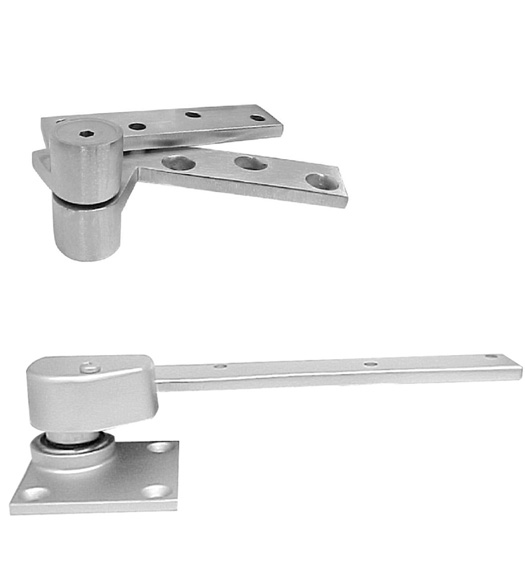

These 3/4" offset pivots are engineered for durability on heavy doors weighing up to 600 pounds. Set includes ABH 0180 top pivot and bottom pivot with installation hardware. ABH Door Pivots are Made in the USA to insure high quality.

For tall or heavy doors use ABH 019 Intermediate Offset Pivot.

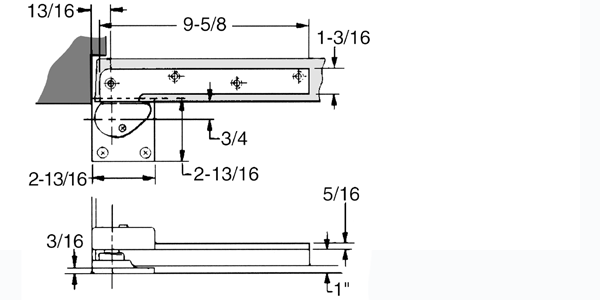

Specifications: for ABH 0147 Door Pivot Set

• Offset: 3/4"
• Door Weight: Up to 600 lbs
• Exterior Door Size: Up to 3'6" x 7'0"
• Interior Door Size: Up to 4'0" x 8'6"
• US32D model UL listed for use on 3 hour fire doors
• BHMA/ANSI C07162/3530A (modified)
• Handed - Must specify left hand door or right hand door when ordering
• ABH 0147 Installation Instructions (PDF)
• ABH 0147 Installation Template (PDF)

*Important When selecting Door Hand for this pivot hinge:
1. Stand on the Push Side of the door, facing the door.
2. If the "Pivot Hinge" is on your "Left", choose "Left Hand Door".
3. If the "Pivot Hinge" is on your "Right", choose "Right Hand Door".

Select Finish  0147-US32D: Satin Stainless Steel 0147-US10B: Oil Rubbed Bronze Add  $91.20 0147-US3: Polished Brass Add  $108.00 0147-US32: Polished Stainless Steel Add  $108.00 0147-US4: Satin Brass Add  $91.20 0147-S1: Painted Aluminum Add  $91.20 0147-S2: Painted Brass Add  $91.20 0147-S5: Painted Dark Bronze Add  $91.20   Select Door Hand  Left Hand Door Right Hand Door
