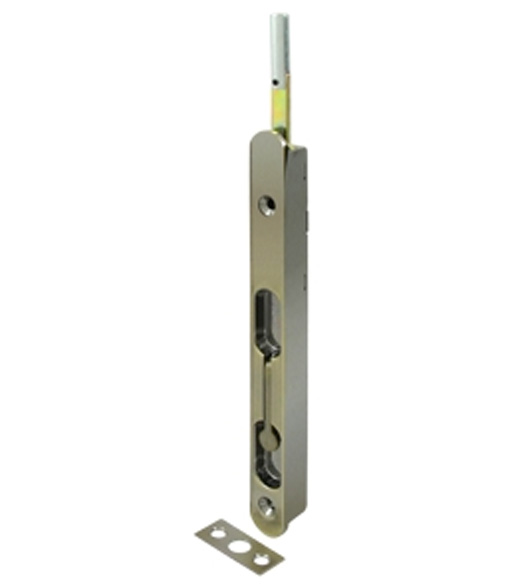

This Deltana 18" extension flush boltl (also know as an door edge bolt) is installed into the edge of the door and have a flip style lever that is moved up and down to push the attached rod and bolt into a header or threshold (footer), which locks or unlocks an inactive door. Packaged complete with flush bolt, matching finish screws and strike plate. Available in 5 different finishes.

Here are some other size Flush Bolts we carry:
4" Square Corners - 6" Square Corners - 6" Round Corners - 7" Heavy Duty - Extension Flush Bolts in 12", 18", 24"

This 18" flush bolt is builder's grade cast zinc. Fits most of the standard T-Astragal prepped for rounded corner extension flush bolts.

Specifications of the Deltana 18EFBZ Flush Door Bolt:

• Handle Plate Length: 7-3/8"
• Handle Plate Width: 3/4"
• Handle Plate Depth: 5/8"
• Handle Plate Corners: Round
• Bolt Diameter: 5/16"
• Bolt Length: 3-3/8"
• Bolt Throw: 7/8"
• Strike Plate Length: 1-1/2"
• Strike Plate Width: 5/8"
• Strike Plate Thickness: 1/16"
• Material: Zinc
• Available Finishes: 5

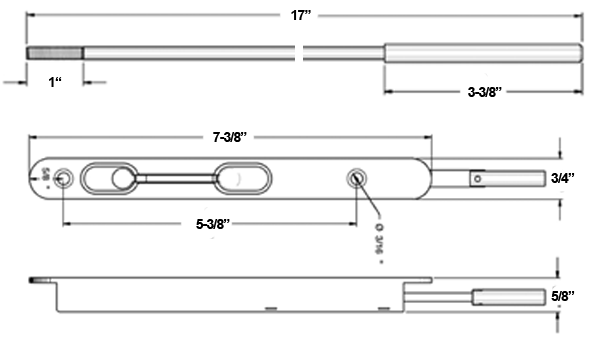

• Deltana 18EFBZ Dimension Diagram (PDF)

Sold Individually
