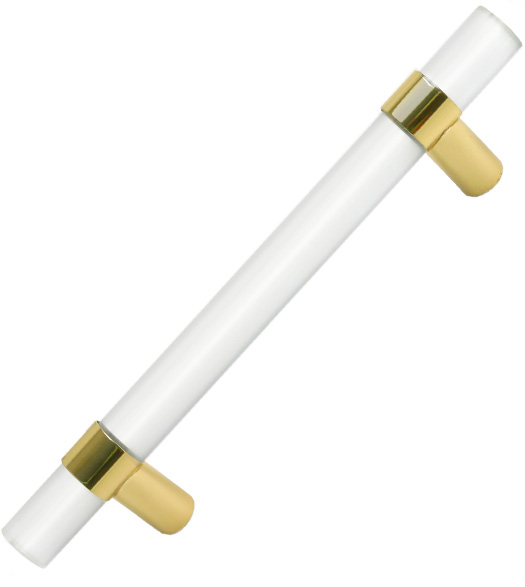

First Impressions CBN100SBRA, Acrylic Door Pull 1 Inch Diameter
The 1 Inch Diameter Acrylic Door Pull is available in many sizes ranging from 12 inches to 84 inches. Reccomended for medium duty applications, all of the lengths have a 1 inch diameter and are available in either frosted or clear acrylic. This First Impressions Cabinet 100 Door Pull can be thru-bolt mounted, surface mounted, or back-to-back mounted. The brackets are available in a wide array of finish colors.
Specifications for the First Impressions CBN100SBRA Acrylic Door Pull:
Available in 7 Sizes:
CBN100018SBRA:
- Total Length: 18"
- Center to Center Mount: 12"
- Pull Handle Diameter: 1"
- Projection: 2.55"
- Clearance: 1.49"
CBN100024SBRA:
- Total Length: 24"
- Center to Center Mount: 18"
- Pull Handle Diameter: 1"
- Projection: 2.55"
- Clearance: 1.49"
CBN100036SBRA:
- Total Length: 36"
- Center to Center Mount: 24"
- Pull Handle Diameter: 1"
- Projection: 2.55"
- Clearance: 1.49"
CBN100048SBRA:
- Total Length: 48"
- Center to Center Mount: 36"
- Pull Handle Diameter: 1"
- Projection: 2.55"
- Clearance: 1.49"
|
CBN100060SBRA:
- Total Length: 60"
- Center to Center Mount: 48"
- Pull Handle Diameter: 1"
- Projection: 2.55"
- Clearance: 1.49"
CBN100072SBRA:
- Total Length: 72"
- Center to Center Mount: 54"
- Pull Handle Diameter: 1-1/2"
- Projection: 2.55"
- Clearance: 1.49"
CBN100084SBRA:
- Total Length: 84"
- Center to Center Mount: 54"
- Pull Handle Diameter: 1"
- Projection: 2.55"
- Clearance: 1.49"
|
Note: This door handle is handmade in the USA when you order it— it can be custom designed to fit your specific door application in lengths up to 6 feet. Unfortunately, because of the made-to-order nature of the door handle, it is Not Cancelable or Returnable. Please Contact Us with your requirements or if you have any questions.
When Selecting a Mounting Hardware:
- Thru-Bolted Mounting: Pull bolts through the door.
- Surface Mounting: Pull screws to the face of the door.
- Back-to-Back Mounting: Pulls bolt to each other through the door. Requires 2 pulls.
Sold individually (1 door pull handle). If you order Back-to-Back Mounting please Order 2 Pulls.
|
