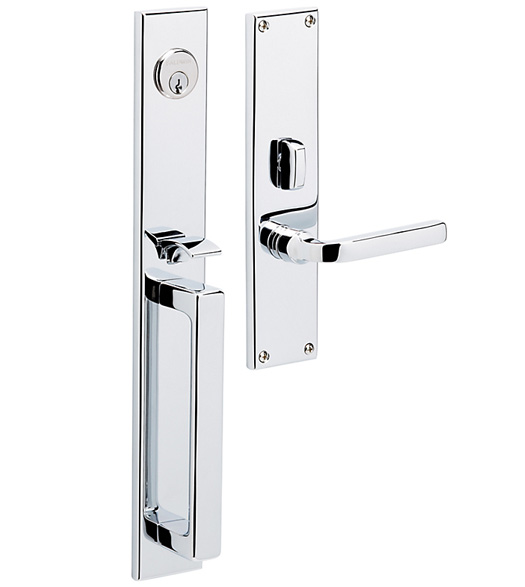

The Minneapolis Mortise Handleset was made to grace the front door of a modern home in a big city; but even if you don't live in an urban landscape, this modern handleset is perfect to bring Minneapolis glamour to any home. It is available as a single cylinder, double cylinder, or full dummy set. This Contemporary Mortise Minneapolis Handleset with 5190 Lever is available in a huge selection of modern finishes.

Mortise locks have been, and still are, the established norm for Europe and much of the rest of the world. In the early 1960’s Baldwin brought residential mortise locks to America. They ‘founded’ the residential mortise industry and continue to be the leader – so much so that their competitors have bought Baldwin locks for their own homes.

Features of the Modern 6976 Minneapolis Door Entrance Handle:

• Solid forged brass for maximum strength and durability.
• Heavy duty steel mortise lock body for a lifetime of trouble-free operation.
• Mortise locks have adjustable forged brass lock fronts, protected by armored scalp fronts for ultimate strength and protection against tampering.
• Forged brass and steel mechanical.
• Locks and strikes fit standard ANSI A115.1 preparation .
• Reinforced steel security strike with three inch screws.
• Anti friction latch bolt with 3/4” throw.
• 1” throw deadbolt has two hardened steel inserts for maximum protection and security.
• 7mm hub broached on the diamond
• Certified by Underwriters Laboratories (UL) for use on fire doors up to three-hour rating.
• Lifetime Limited Warranty on workmanship, materials, and operation.

Specifications of the Contemporary Estates Collection Minneapolis Handleset:

• Interior Trim: 5190 Lever
• Exterior Plate Length: 16"
• Exterior Plate Width: 2-1/4"
• Overall Exterior Projection: 2-1/5"
• Interior Plate Length: 10"
• Interior Plate Width: 2-1/4"
• Interior Lever Length: 2-24/25"
• Overall Interior Projection: 2-11/20"
• Door Thickness: 1-3/4" or 1-3/8"
• Backset: 2-1/2" or 2-3/4"
• Minneapolis Handleset Specification Sheet (PDF)
• Mortise Box Specification Sheet (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Double Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a key unlocks the deadbolt and a knob/lever operates the latch.

Select Function - Important Ordering Guide FD: Full Dummy Set ENTR: Single Cylinder Add  $468.80 DBLC: Double Cylinder Add  $549.60   Select Finish  260: Polished Chrome 112: Venetian Bronze 003: PVD Polished Brass 190: Satin Black 102: Oil Rubbed Bronze 044: PVD Satin Brass 055: PVD Polished Nickel 056: PVD Satin Nickel   Select Door Thickness  1-3/4" Door Thickness 1-3/8" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset - 1-3/4" or thicker doors only   Select Door Handing & Door Swing - Important Ordering Guide Right Hand Door, Out-Swing Right Hand Door, In-Swing Left Hand Door, Out-Swing Left Hand Door, In-Swing   Keying - Important Ordering Guide Non Keyed (dummy set) I only ordered one Keyed Different Keyed Alike Add  $5.50
