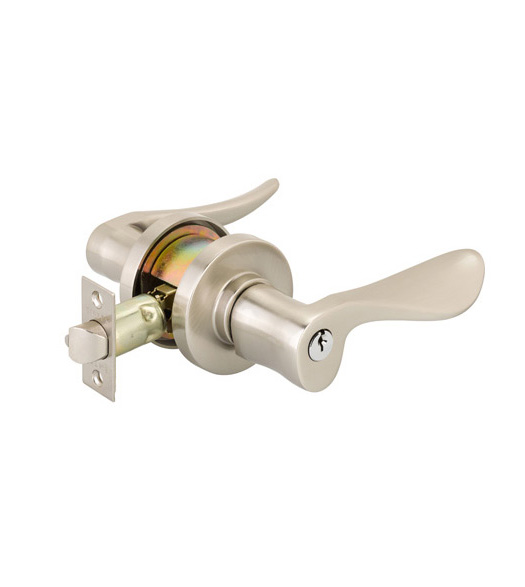

Emtek's Luzern Key in Lever with Disk Rose features a stunning blending of modern and classic design aesthetics for a door leverset that is truly beautiful. This Luzern Keyed Entry Lever with Round Disk Rosette is available in two functions: a keyed entry--where a key operates the latch from the exterior--and a dummy key in lever--which does not latch nor lock. he Luzern Keyed Entryset will fit doors with 2-3/8 inch or 2-3/4 inch backsets that are 1-1/4 inches to 2-3/4 inches thick.

Features and Specifications for the Luzern Keyed Entry Lever with Round Disk Rosette:

• Lever Length: 5-1/8"
• Lever Projection: 2-3/16"
• Lever Clearance: 1-7/8"
• Rose Diameter: 2-3/4"
• Rose Thickness: 3/4"
• Doors Thickness: 1-1/4" - 2-3/4"
• Backset: 2-3/8" or 2-3/4"
• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.

Available Functions

• Keyed Entry (Keyed Lock): Use when a keyed lock is needed. The lock is operated by a key from the exterior and a thumbturn on the lever from the interior. Complete set - 2 levers, 2 roses, keys, door latch, and strike plate.
• Dummy: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5115LU: Keyed Entry (Keyed Lock) 5015LU: Dummy   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2-1/16" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing   Keying - Important Ordering Guide I Only Ordered One Lock Non-Keyed (Dummy Function) Keyed Different Keyed Alike Add  $5.50
