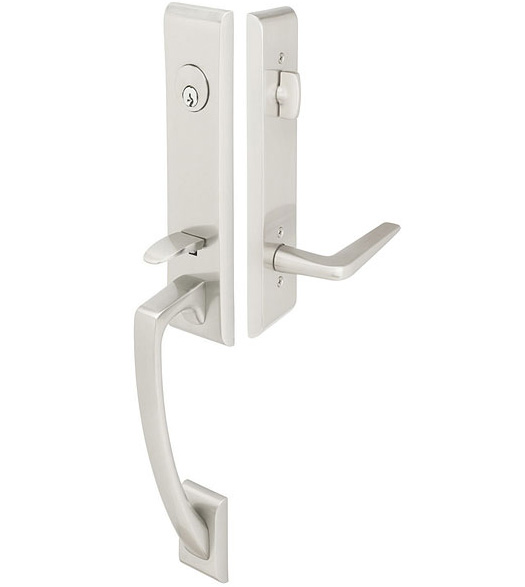

The Apollo Handleset is a modern door handle that features the clean lines and bold style that is so popular with today's designers. The Apollo Entry Door Handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. It is available in a single cylinder function and a dummy function. Choose from several stunning finishes and a huge array of interior knobs and levers.

Features for the Transitional Apollo Handleset:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Apollo Entrance Handleset:

• Material: Brass
• Exterior Top Plate Height: 10-1/4"
• Exterior Top Plate Width: 2-1/2"
• Exterior Bottom Plate Height: 2-3/4"
• Exterior Bottom Plate Width: 1-3/4"
• Exterior Projection: 2-3/4"
• Exterior Grip Clearance: 2-1/4"
• Exterior Grip Thickness: 1"
• Interior Plate Height: 10-1/4"
• Interior Plate Width: 2-1/2"
• Door Thickness: 1-3/4" - 3" please specify
• Backset: either 2-3/8" or 2-3/4"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
• Emtek 4815 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 4805: Full Dummy Set 4815: Single Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" - 2-1/16" Door Thickness 2-1/4" - 2-7/16" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    AG-RH: Argos Lever (Right Handing)   AG-LH: Argos Lever (Left Handing)   ATN-RH: Athena Lever (Right Handing)   ATN-LH: Athena Lever (Left Handing)   BA-RH: Basel Lever (Right Handing)   BA-LH: Basel Lever (Left Handing)   GV-RH: Geneva Lever (Right Handing)   GV-LH: Geneva Lever (Left Handing)   HLO-RH: Helios Lever (Right Handing)   HLO-LH: Helios Lever (Left Handing)   HEC-RH: Hercules Lever (Right Handing)   HEC-LH: Hercules Lever (Left Handing)   HER-RH: Hermes Lever (Right Handing)   HER-LH: Hermes Lever (Left Handing)   LU-RH: Luzern Lever (Right Handing)   LU-LH: Luzern Lever (Left Handing)   MC-RH: Mercury Lever (Right Handing)   MC-LH: Mercury Lever (Left Handing)   POS-RH: Poseidon Lever (Right Handing)   POS-LH: Poseidon Lever (Left Handing)   SIO-RH: Sion Lever (Right Handing)   SIO-LH: Sion Lever (Left Handing)   STU-RH: Stuttgart Lever (Right Handing)   STU-LH: Stuttgart Lever (Left Handing)   TRT-RH: Triton Lever (Right Handing)   TRT-LH: Triton Lever (Left Handing)   BN: Bern Knob   OCT: Octagon Knob   OR: Orb Knob   ROU: Round Knob   SQU: Square Knob   MDC: Modern Disc Crystal Knob   MSC: Modern Square Crystal Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
