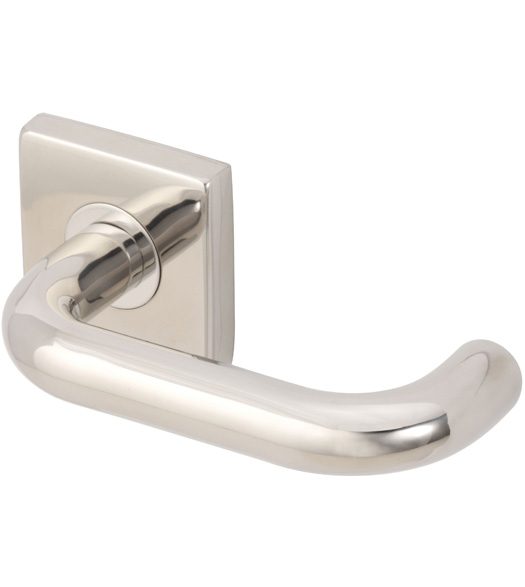

The Munich Lever with Square Rose is for use in residential and commercial applications. It will fit 1-3/8 inch to 1-3/4 inch thick doors with standard backsets of 2-3/8 inches or 2-3/4 inches. The Stainless Steel Munich Lever with Square SE Rose is available in either satin stainless steel or polished stainless steel finishes. Choose from dummy, passage, or privacy functions.

Features of the Stainless Steel Munich Leverset:

• Fits most standard door cut outs (2-1/8" pre-drilled doors).
• Hollow stainless steel lever.
• Latch: 28 Degrees Retraction (TL4 Latch)
• Concealed Installation
• Sold as complete set.
• Easy to install.

Specifications of the Stainless Steel Munich Leverset:

• Material: 304 Stainless Steel
• Lever Length: 5-33/64"
• Lever Projection: 2-7/16"
• Rose Length: 2-3/8" square
• Rose Projection: 7/16"
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8" or 2-3/4"
• Hub and Spindle: 5/16" (8mm) Square
• Latch Faceplate: 1" x 2-1/4" Standard Square Corner
• Latch Strike: Full Lip Strike and T-Strike with Square Corners.

Available Functions:

• Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Note: Single Dummy is Handed. All other functions are non-handed. Handing Guide

Select Function - Important Ordering Guide DR: Single Dummy (right handing) DL: Single Dummy (left handing) L461: Passage (hall or closet) Add  $96.00 L462: Privacy (bedroom or bathroom) Add  $96.00   Select Finish  US32D: Satin Stainless Steel US32: Polished Stainless Steel Add  $16.00   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
