| Item No: |
INX-FH29PD8440 |
| List Price: |
$688.00 |
| Your Price: |
$550.99 |

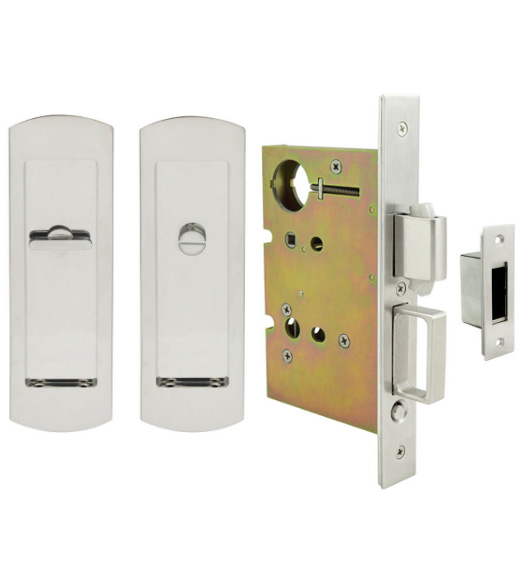

INOX FH29PD8440, Arc Privacy Pocket Door Hardware
The Arc Pocket Door Privacy Set locks a sliding pocket door shut and has an turn on the exterior for emergency use. It comes packaged with everything you'll need to install it on a single pocket door, including 2 flush pulls and a mortise privacy lock that features a retractable finger edge pull. The Arc Sliding Door Trim is available in a wide array of finishes and depending on the finish you choose, the product will be made from either brass or stainless steel.
Pocket Door Privacy Lock: Locks but has access to unlock from the outside via emergency turn. Privacy locks do not offer security, they offer privacy.
Also Available Matching: Passage Set and Keyed Entry Function
Specifications of the Arc Sliding Door Trim:
- Material: Brass or Stainless
- Face Plate Height: 7-7/8"
- Face Plate Width: 2-23/64"
- Face Plate Projection: 5/64"
- Mortise Box Height: 5-29/32"
- Mortise Box Width: 11/16"
- Mortise Box Depth: 3-41/64"
- Mortise Box Face Plate Height: 8"
- Mortise Box Face Plate Width: 1"
- Door Thickness: 1-3/4", 2", 2-1/4", 2-3/4", or 3"
- Door Backset: 2-3/4", 2-1/2", or 2"
- Mortise Finger Pull: is thrown by pressing the button on the mortise's face plate. It can be retracted simply by pressing it flush with the faceplate.
- Non-handed
- INOX FH29PD8440 Dimensions Diagram (PDF)
*Sold as a Set: two (2) flush pulls, a privacy mortise, and all mounting hardware. For One (1) Door.
|
