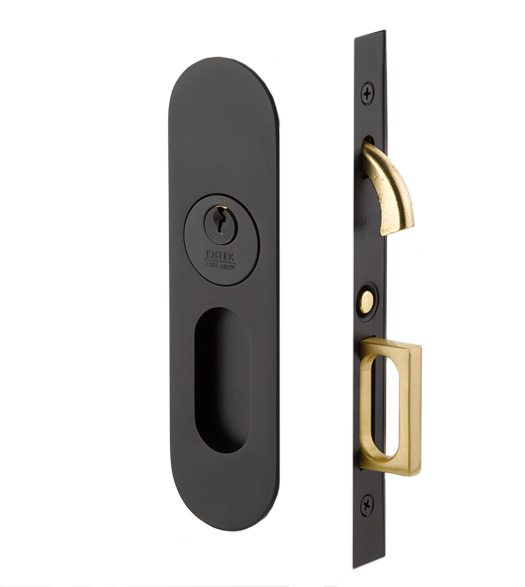

The Narrow Oval Pocket Door Keyed Entry has a modern look perfect for home remodel projects. This Narrow Oval Mortise Pocket Door Keyed Entry Set is for use on sliding pocket doors where security is needed. The latch hooks into the door frame to secure the pocket door and is operated by a key from the exterior and by a thumbturn from the interior (see picture below for interior trim). It will fit doors that are 1-3/8 to 1-3/4 inches thick. The oval trim plates are 1/8 inches thick.

Pocket Door Keyed Lock: Use when a lock is needed. Unlocked by a key from the outside and a thumbturn on the inside.

Also Available Matching: Dummy Set, Passage Set, and Privacy Set

Specifications of the Narrow Oval Keyed Mortise Pocket Door Lock:

• Face Plate Height: 7-1/4"
• Face Plate Width: 2"
• Face Plate Projection: 1/8"
• Mortise Box Height: 6-1/4"
• Mortise Box Width: 3-3/8"
• Mortise Box Face Plate Height: 8"
• Mortise Box Face Plate Width: 7/8"
• Fing Grab Dimensions: 7/8"w x 2"h
• Door Thickness: 1-3/8" or 1-3/4"
• Mortise Finger Pull: is thrown by pressing the button on the mortise faceplate. It can be retracted simply by pressing it flush with the faceplate.
• Non-handed
• Emtek 2163 Dimensions Diagram (PDF)

*Sold as a Set: two (2) oval flush pulls, a keyed mortise, and all mounting hardware. For One (1) Door.

Select Finish  US19: Matte Black US10B: Oil Rubbed Bronze US15: Satin Nickel US14: Polished Nickel US26: Polished Chrome US4: Satin Brass US3UNL: Unlacquered Brass Add  $32.00   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50   Select Door Thickness  1-3/8" Door Thickness 1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness
