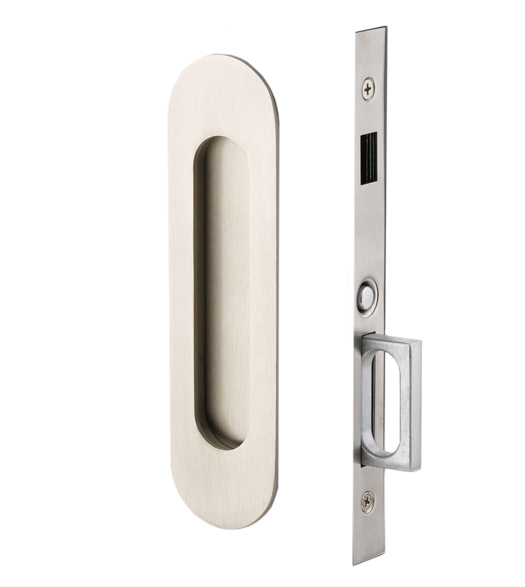

The Narrow Oval Dummy Mortise Pocket Door Hardware comes packaged with 2 flush pulls and a dummy mortise that has a cutout to accept a latch from a keyed or privacy pocket door mortise. This makes it able to be used on the inactive side of a pair of sliding doors. The Narrow Oval Dummy Pocket Door Set is available in a wide array of finishes so you'll be able to match your personal style. It will fit doors that are 1-3/8 to 1-3/4 inches thick. The oval trim plates are 1/8 inches thick.

Pocket Door Dummy Function: This set neither locks nor latches. It features two flush pulls and a mortise box with a built in finger edge pull to help retrieve the door from the pocket.

Also Available Matching: Passage Set, Privacy Set, and Keyed Entry Function

Specifications of the Dummy Narrow Oval Sliding Door Trim:

• Face Plate Height: 7-1/4"
• Face Plate Width: 2"
• Face Plate Projection: 1/8"
• Mortise Box Height: 6-1/4"
• Mortise Box Width: 3-3/8"
• Mortise Box Face Plate Height: 8"
• Mortise Box Face Plate Width: 7/8"
• Finger Grab Dimensions: 7/8"w x 2"h
• Door Thickness: 1-3/8"or 1-3/4"
• Mortise Finger Pull: is thrown by pressing the button on the mortise faceplate. It can be retracted simply by pressing it flush with the faceplate.
• Non-handed
• Emtek 2166 Dimensions Diagram (PDF)

*Sold as a Set: two (2) oval flush pulls, a dummy set mortise pull, and all mounting hardware. For One (1) Door.
