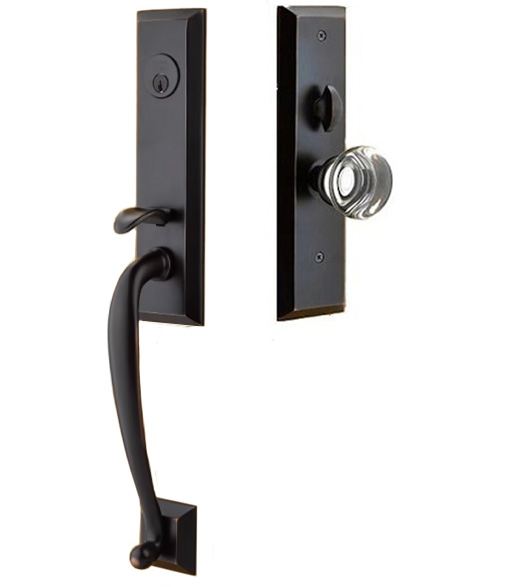

The Harrison Mortise Entrance Handleset is a transitional mortise entryset that is available as a single cylinder lock and a dummy function so you can have matching grips of both sides of a double door. The Harrison Mortise Entrance Set will fit standard door thicknesses from 1-3/4 inches to 2-3/4 inches thick with either 2-1/2 inch or a 2-3/4 inch backset. The Harrison Mortise Entrance Handleset comes in the most popular finishes that Emtek offers. You can also choose your favorite interior trim knob or lever.

Features of the Emtek Harrison Handleset and the ANSI F20 Heavy Duty Lock Body: Keyway: Schlage C UL 180 minute fire rating Deadlocking latch bolt with saw-proof inserts. Anti-pick security latch. When the deadbolt is engaged, the outside thumb press is automatically locked. The latch bolt is retracted by the thumb press / knob / lever on either side, except when the outside thumb press is locked by stop button, then it can only be opened from the exterior by use of the key. Making it ideal for doors you want to automatically lock. This feature can be easily toggled on and off by pressing the stop and release button on the mortise box face. Operating the interior trim retracts both the deadbolt and the latch bolt for emergency egress.

Specifications of the Harrison Mortise Entry Set

• Material: Solid Brass
• Exterior Top Plate Height: 10"
• Exterior Top Plate Width: 2-11/16""
• Exterior Grip Thickness: 1"
• Exterior and Interior Plate Thickness: 1/2"
• Interior Height: 10"
• Interior Width: 2-11/16"
• Door Thickness: 1-3/4" - 2-3/4" please specify
• Backset: either 2-1/2" or 2-3/4"
• Emtek 3351 Specifications (PDF)
• Emtek ANSI F20 Mortise Box Specifications (PDF)
• Emtek ANSI F20 Mortise Installation Instructions (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 3051: Full Dummy Set 3351: Single Cylinder Add  $284.80   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US7: French Antique US3: Polished Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" Door Thickness 1-7/8" - 2-1/4" Door Thickness 2-3/8" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset   Select Interior Trim    PC: Providence Clear Crystal Knob   LW: Lowell Clear Crystal Knob   BL: Bristol Clear Crystal Knob   OT: Old Town Clear Crystal Knob   WS: Windsor Clear Crystal Knob   E: Egg Knob   NW: Norwich Knob   W: Waverly Knob   P: Providence Knob   ME: Merrimack Lever   CV: Coventry Lever   WM: Wembley Lever   T: Turino Lever   SF: Santa Fe Lever   R: Rustic Lever   M: Milano Lever   EN: Elan Lever   C: Cortina Lever   Select Door Handing & Door Swing - Important Ordering Guide Left Hand Door, Out-swing Left Hand Door, In-swing Right Hand Door, Out-swing Right Hand Door, In-swing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
