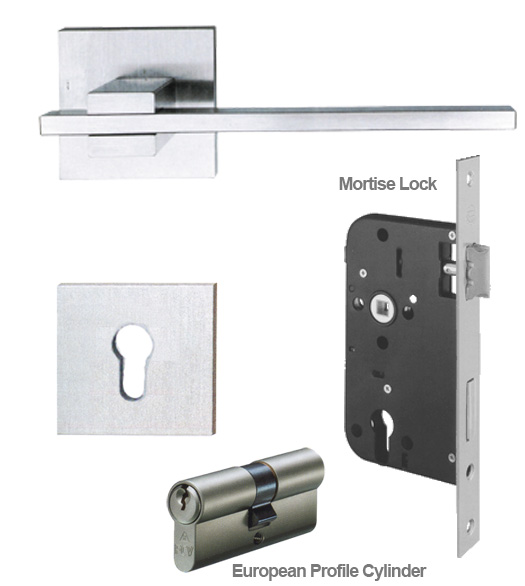

European style entry door leverset with satin stainless steel door levers and 2" square roses. European Mortise Lockcase: Heavy duty for residential, commercial and multifamily housing. Entry door lock function uses single cylinder European profile cylinder with Schlage C keyway.

Also available: Matching European Mortise Leverset for interior doors and European Mortise Leverset with Round Roses

Features of the Square Rose European Mortise Lock Set:

• Mortise Case Faceplate: Stainless steel 20mm Wide x 235mm High
• Latch Bolt: Zinc plated, Key action
• Deadbolt: Double throw
• Strike plate: Stainless steel

Specifications of the Square Rose European Lock Mortise Kit:

• Material: Stainless Steel Trim
• Finish: Satin Stainless Steel
• Lever Hub: 8mm (5/16") square
• Rose Plates: 50mm (2") Square
• Rose Plate Thickness: 9mm (3/8")
• Door Thickness: 1-1/2" (38mm) minimum thickness, optional up to 3" thick
• Backset: Optional 70mm (2-3/4"), 60mm (2-3/8") or 50mm (2")
• Handing: Handed, field reversible
• AHI EU1000 Series European Mortise Lock Dimensions

Sold as a set, (for 1 door). Set includes two (2) door levers with 50mm square roses, European profile cylinder with 50mm square roses, mortise lock case, face plate, strike plate, spindles and installation screws.

Select Door Levers - Important Ordering Guide   SIG101 Lever   SIG102 Lever   SIG103 Lever   SIG104 Lever   SIG105 Lever   SIG106 Lever   SIG107 Lever   SIG108 Lever   SIG110 Lever   SIG112 Lever   SIG114 Lever   SIG116 Lever   SIG121 Lever Add  $40.00   SIG122 Lever Add  $40.00   SIG123 Lever Add  $40.00   SIG124 Lever Add  $40.00   SIG126 Lever Add  $40.00   SIG127 Lever Add  $40.00   SIG128 Lever Add  $40.00   SIG131 Lever Add  $40.00   SIG132 Lever Add  $40.00   SIG133 Lever Add  $40.00   SIG134 Lever Add  $40.00   SIG135 Lever Add  $40.00   SIG138 Lever Add  $40.00   SIG139 Lever Add  $40.00   SIG141 Lever Add  $40.00   SIG152 Lever Add  $40.00   SIG154 Lever Add  $40.00   SIG155 Lever Add  $40.00   SIG156 Lever Add  $40.00   SIG157 Lever Add  $40.00   Select Backset - Important Ordering Guide 2-3/8" Backset   Select Handing - Important Ordering Guide Right Hand Door, Out-Swing   Select Door Thickness  1-3/4" Thick Door   Keying (Select Keyed Different or Keyed Alike) - Important Ordering Guide I only ordered one Keyed Different Keyed Alike Add  $8.00
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
