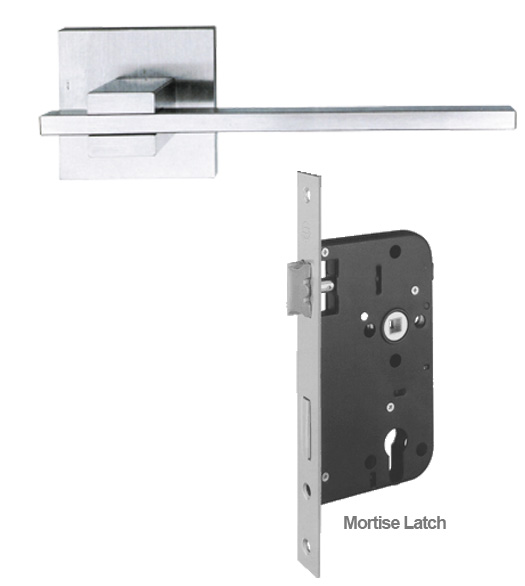

This is a European style, interior door leverset. It is available with your choice of satin stainless steel door levers and comes with 2" square roses. The European Mortise Lockcase features heavy duty construction for residential, commercial, and multifamily housing. Interior door functions available as passage or privacy sets. The stainless steel trim resistant to corrosion, knocks, scratches and abrasion making it an ideal material for door hardware.

Also available: Matching European Mortise Entry Lock Lever Sets for interior or exterior entry doors that require security locking and European Mortise with Round Roses

Features of the Square Rose European Mortise Set:

• Mortise Case Faceplate: Stainless steel 20mm Wide x 235mm High
• Latch Bolt: Zinc plated, Key action
• Strike plate: Stainless steel

Specifications of the Square Rose European Mortise Leverset:

• Material: Solid Stainless Steel Trim
• Finish: Satin Stainless Steel
• 203 Rose Trim Plates: 50mm (2") Square
• 203 Rose Trim Plate Thickness: 9mm (3/8")
• Lever Hub: 8mm (5/16") square
• Door Thickness: 1-1/2" (38mm) Minimum thickness, optional up to 3" thick
• Backset: Optional 70mm (2-3/4"), 60mm (2-3/8") or 50mm (2")
• Handing: Handed, field reversible
• AHI EU1000 Series European Mortise Lock Dimensions

Available Functions:

• Passage (Hall or Closet): The latchbolt is thrown and retracted by a lever on either side of the door. Does not lock. Complete set includes two (2) door levers with 50mm square roses, mortise lock case, face plate, strike plate, spindles and installation screws.
• Privacy (Bed or Bathroom: The latchbolt is thrown and retracted by a lever on either side of the door. The deadbolt is thrown and retracted by a turnpiece on the interior. An emergency release hole on exterior. Not suitable for use as a security lock. Complete set includes two (2) door levers with 50mm square roses, mortise lock case, interior thumbturn, face plate, strike plate, spindles and installation screws.

Select Function - Important Ordering Guide SIG20x-EU1x25: Passage (Hall or Closet) SIG20x-EU1x61: Privacy (Bedroom or Bathroom)   Select Door Levers - Important Ordering Guide   SIG101 Lever   SIG102 Lever   SIG103 Lever   SIG104 Lever   SIG105 Lever   SIG106 Lever   SIG107 Lever   SIG108 Lever   SIG110 Lever   SIG112 Lever   SIG114 Lever   SIG116 Lever   SIG121 Lever Add  $40.00   SIG122 Lever Add  $40.00   SIG123 Lever Add  $40.00   SIG124 Lever Add  $40.00   SIG126 Lever Add  $40.00   SIG127 Lever Add  $40.00   SIG128 Lever Add  $40.00   SIG131 Lever Add  $40.00   SIG132 Lever Add  $40.00   SIG133 Lever Add  $40.00   SIG134 Lever Add  $40.00   SIG135 Lever Add  $40.00   SIG138 Lever Add  $40.00   SIG139 Lever Add  $40.00   SIG141 Lever Add  $40.00   SIG152 Lever Add  $40.00   SIG154 Lever Add  $40.00   SIG155 Lever Add  $40.00   SIG156 Lever Add  $40.00   SIG157 Lever Add  $40.00   Select Door Thickness  1-3/4" Thick Door   Select Backset - Important Ordering Guide 2-3/8" Backset
Note: This item is either Special Order or has been Discontinued. Please Contact Us.
