| Item No: |
EMT-5103D |
| List Price: |
$317.10 |
| Your Price: |
$253.99 |

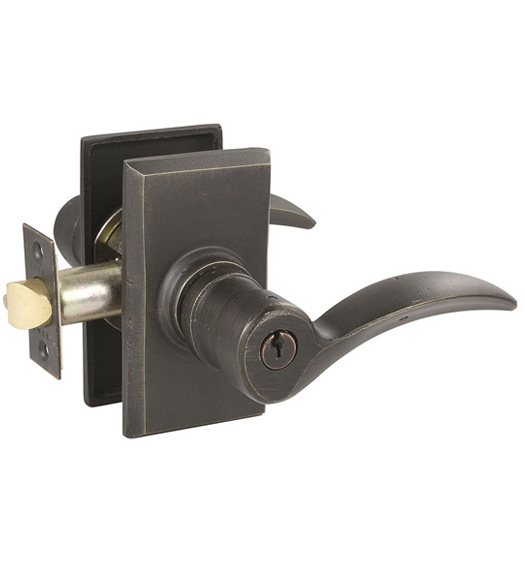

Emtek 5103D, Durango Key in Lever with Rectangular #3 Rosette
The Durango Lever with Sandcast Bronze Rectangular Rose is available in flat black bronze, medium bronze, and white bronze finishes. This rustic lever will fit doors with 2-3/8 inch or 2-3/4 inch backsets that are 1-1/4 inches to 2-3/4 inches thick. The Durango Key in Lever with Rectangular #3 Rosette is available as a keyed entry or dummy function. The keyed entry is operated by a key from the exterior and a thumbturn from the interior while a dummy lever is just for looks and does not latch nor lock.
Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.
Features and Specifications for the Emtek Durango Lever with #3 Rosette:
- Lever Length: 5"
- Lever Projection: 2-3/4"
- Lever Clearance: 2"
- Rose Height: 4-1/2"
- Rose Width: 2-1/2"
- Rose Thickness: 3/4"
- Doors Thickness: 1-1/4" - 2-3/4"
- Backset: 2-3/8" or 2-3/4"
- Keyway: Schlage C
- Will fit standard 2-1/8" door preparations.
Available Functions
- Keyed Entry (Keyed Lock): Use when a keyed lock is needed. The lock is operated by a key from the exterior and a thumbturn on the lever from the interior. Complete set - 2 levers, 2 roses, keys, door latch, and strike plate.
- Dummy: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
Levers are Handed. Handing Guide
|
