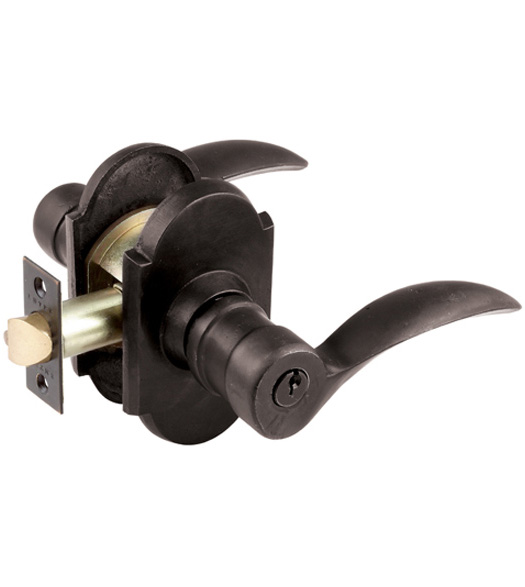

The Durango Key in Lever with Arched Rose is a wonderfully rustic lever that is great for southwest decor and ranch style remodels. The Durango Lever with Sandcast Bronze Arched Rose is available in flat black bronze, medium bronze, and white bronze finishes. This sandcast bronze lever will fit doors with 2-3/8 inch or 2-3/4 inch backsets that are 1-1/4 inches to 2-3/4 inches thick. The Durango Key in Lever with Arched Rose is available as a keyed entry or dummy function. The keyed entry is operated by a key from the exterior and a thumbturn from the interior while a dummy lever is just for looks and does not latch nor lock.

Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.

Features and Specifications for the Emtek Durango Lever with #1 Rosette:

• Lever Length: 5"
• Lever Projection: 2-3/4"
• Lever Clearance: 2"
• Rose Height: 4-7/16"
• Rose Width: 2-9/16"
• Rose Thickness: 3/4"
• Doors Thickness: 1-1/4" - 2-3/4"
• Backset: 2-3/8" or 2-3/4"
• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.
• Emtek 5104D Dimensions (PDF)

Available Functions

• Keyed Entry (Keyed Lock): Use when a keyed lock is needed. The lock is operated by a key from the exterior and a thumbturn on the lever from the interior. Complete set - 2 levers, 2 roses, keys, door latch, and strike plate.
• Dummy: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5104D: Keyed Entry (Keyed Lock) 5154D: Dummy   Select Finish  FB: Flat Black Bronze Patina MB: Medium Bronze Patina TWB: Tumbled White Bronze Patina   Select Door Thickness  1-1/4" - 2" Door Thickness 2-1/16" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing   Keying - Important Ordering Guide I Only Ordered One Lock Non-Keyed (Dummy Function) Keyed Different Keyed Alike Add  $5.50
